RhinoEU® calcium sulphate raised floor
RhinoEU is a high-density calcium sulphate raised floor panel, about 1,650 kg/m³. It feels solid and walks quietly, which is why it is popular in premium offices and executive floors. Rhino has produced RhinoEU on a full line since 2007, with full-system reports from Sirim QAS and TÜV SÜD PSB in 2008.
Applications
Heavy, dense panels with no hollow sound. Good for executive floors, meeting rooms and lobbies.
Covered panels in anti-static HPL or conductive vinyl, with Airflow panels in front of the racks.
Control rooms that need a quiet, stable floor use Covered panels on M4 or M5 pedestals.
Technical specifications
Covered: anti-static HPL or conductive vinyl, galvanized steel base, ABS/PVC edge
| Item | EU800C | EU1000C | EU1250C | EU1500C |
|---|---|---|---|---|
| Panel size (mm) | 600 x 600 | 600 x 600 | 600 x 600 | 600 x 600 |
| Panel thickness | 32.00 mm | 33.00 mm | 36.00 mm | 40.00 mm |
| Panel weight | 18.00 kg | 19.00 kg | 21.00 kg | 23.00 kg |
| System weight | 57.00 kg | 59.00 kg | 63.00 kg | 69.00 kg |
| Concentrated load | 3.00 kN | 4.50 kN | 5.56 kN | 6.67 kN |
| Uniform load | 8.00 kN | 12.00 kN | 16.00 kN | 20.00 kN |
| Ultimate load | 9.00 kN | 13.50 kN | 16.68 kN | 20.01 kN |
Bare: galvanized steel top and base, for carpet tiles or vinyl laid on site
| Item | EU800 | EU1000 | EU1250 | EU1500 |
|---|---|---|---|---|
| Panel size (mm) | 600 x 600 | 600 x 600 | 600 x 600 | 600 x 600 |
| Panel thickness | 31.00 mm | 32.00 mm | 35.00 mm | 39.00 mm |
| Panel weight | 17.50 kg | 18.00 kg | 18.50 kg | 19.00 kg |
| System weight | 56.00 kg | 58.00 kg | 62.00 kg | 68.00 kg |
| Concentrated load | 3.00 kN | 4.50 kN | 5.56 kN | 6.67 kN |
| Uniform load | 8.00 kN | 12.00 kN | 16.00 kN | 20.00 kN |
| Ultimate load | 9.00 kN | 13.50 kN | 16.68 kN | 20.01 kN |
Encapsulated: fully wrapped panel with a stronger edge, easy to lift and replace
| Item | EU800F | EU1000F | EU1250F |
|---|---|---|---|
| Panel size (mm) | 600 x 600 | 600 x 600 | 600 x 600 |
| Panel thickness | 29.00 mm | 30.00 mm | 31.00 mm |
| Panel weight | 17.50 kg | 18.00 kg | 18.50 kg |
| System weight | 56.00 kg | 59.00 kg | 62.00 kg |
| Concentrated load | 3.00 kN | 4.50 kN | 5.56 kN |
| Uniform load | 8.00 kN | 12.00 kN | 16.00 kN |
| Ultimate load | 9.00 kN | 13.50 kN | 16.68 kN |
Airflow: perforated panel, same size and thickness as RhinoEU but lighter
| Item | RSP 800EU | RSP 1000EU |
|---|---|---|
| Panel size (mm) | 600 x 600 | 600 x 600 |
| Panel thickness | 32.00 mm | 32.00 mm |
| Panel weight | 9.00 kg | 10.00 kg |
| System weight | 31.00 kg | 34.00 kg |
| Concentrated load | 3.00 kN | 4.50 kN |
| Uniform load | 8.00 kN | 12.00 kN |
| Ultimate load | 9.00 kN | 13.50 kN |
Stoneline: porcelain tile top for lobbies and reception areas
| Item | EU800S | EU1000S | EU1250S |
|---|---|---|---|
| Panel size (mm) | 600 x 600 | 600 x 600 | 600 x 600 |
| Panel thickness | 38.00 mm | 40.00 mm | 44.00 mm |
| Panel weight | 24.00 kg | 25.00 kg | 26.00 kg |
| System weight | 72.00 kg | 75.00 kg | 78.00 kg |
| Concentrated load | 3.00 kN | 4.50 kN | 5.56 kN |
| Uniform load | 8.00 kN | 12.00 kN | 16.00 kN |
| Ultimate load | 9.00 kN | 13.50 kN | 16.68 kN |

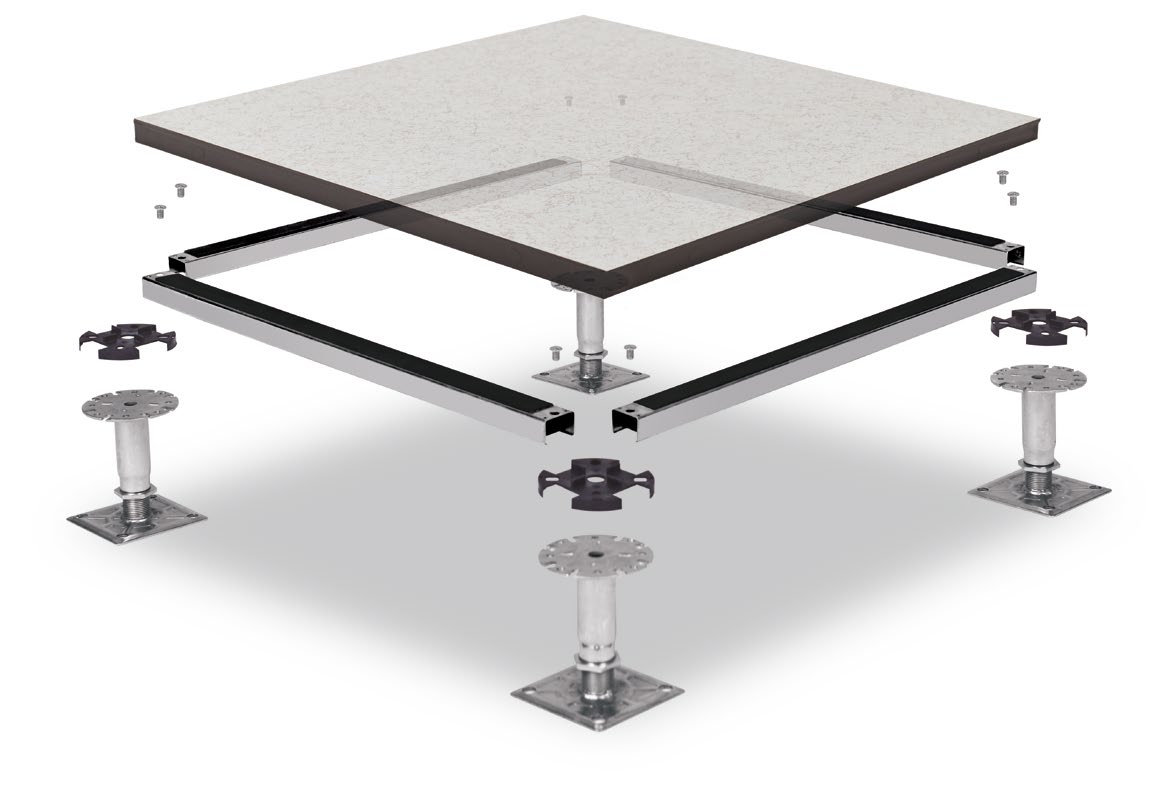

RhinoEU sits on Type M3 / M4 / M5 pedestals with RL reinforced stringers. The rigid grid system is tested to PSA MOB PS/SPU, with centre-edge deflection of 2.5 mm or less at a safety factor of 3 times static load.
Values as published in the manufacturer's datasheets
Datasheets (PDF from Rhino)
- RhinoEU Covered Datasheet (PDF, 1309.8kb)
- RhinoEU Bare Datasheet (PDF, 988.9kb)
- RhinoEU Encapsulated Datasheet (PDF, 955.7kb)
- RhinoEU Airflow Datasheet (PDF, 1121.7kb)
- RhinoEU Stoneline Datasheet (PDF, 1077.5kb)
